Model : 104317



Chain Saw Breakdown





Remington Pole Saw: 104317



Key Number
Part Number
Description
1
8SB
Guide Bar, 8" cut
2
8SC
Saw Chain, 8" cut
3
107481-01 Armature
4
075676
Sprocket Roller Bearing
5
076744
Hex-Head Bolt
(1/4 x 20 avail from hardware store)
6
107512-01
Oil Cap
7
099829-01
Cord
8
111218-01
Side Cover
9
076105
Thrust Disk
10
107482-01 Field
10-1
076647
Bearing &
Brush Holder
10-2
-
Field Screw
(avail from hardware store)
11
059606
Drive Gear
12
107713-01 Sprocket Gear
(nylon sprocket)
13
108626-01
Front Hand Guard
14
079089-01
Motor Housing
15
NPC-4C
Hex Nut 1/4" x 20
(avail from hardware store)
16
077115
Adjusting Plate Assembly
17
111691-01 Bearing Plate
17-1
075499
Roller Bearing
18
079086-02
Oil Reservoir
19
059045
Pan-Head Tap Screw
20
076905
Pan-Head Shoulder Screw
21
076906
Flat-Head Tap Screw
22
107708-01 Pan-Head Tap Screw 8 x 7/8
(avail from hardware store)
23
077143
Sprocket Support
24
077525S
Lock-Off Switch
25
122511-01
Sprocket Kit
107713-01, 075676 and 059606
26
108639-01
Oil Cap and Reservoir Kit
079086-02 & 107512-01

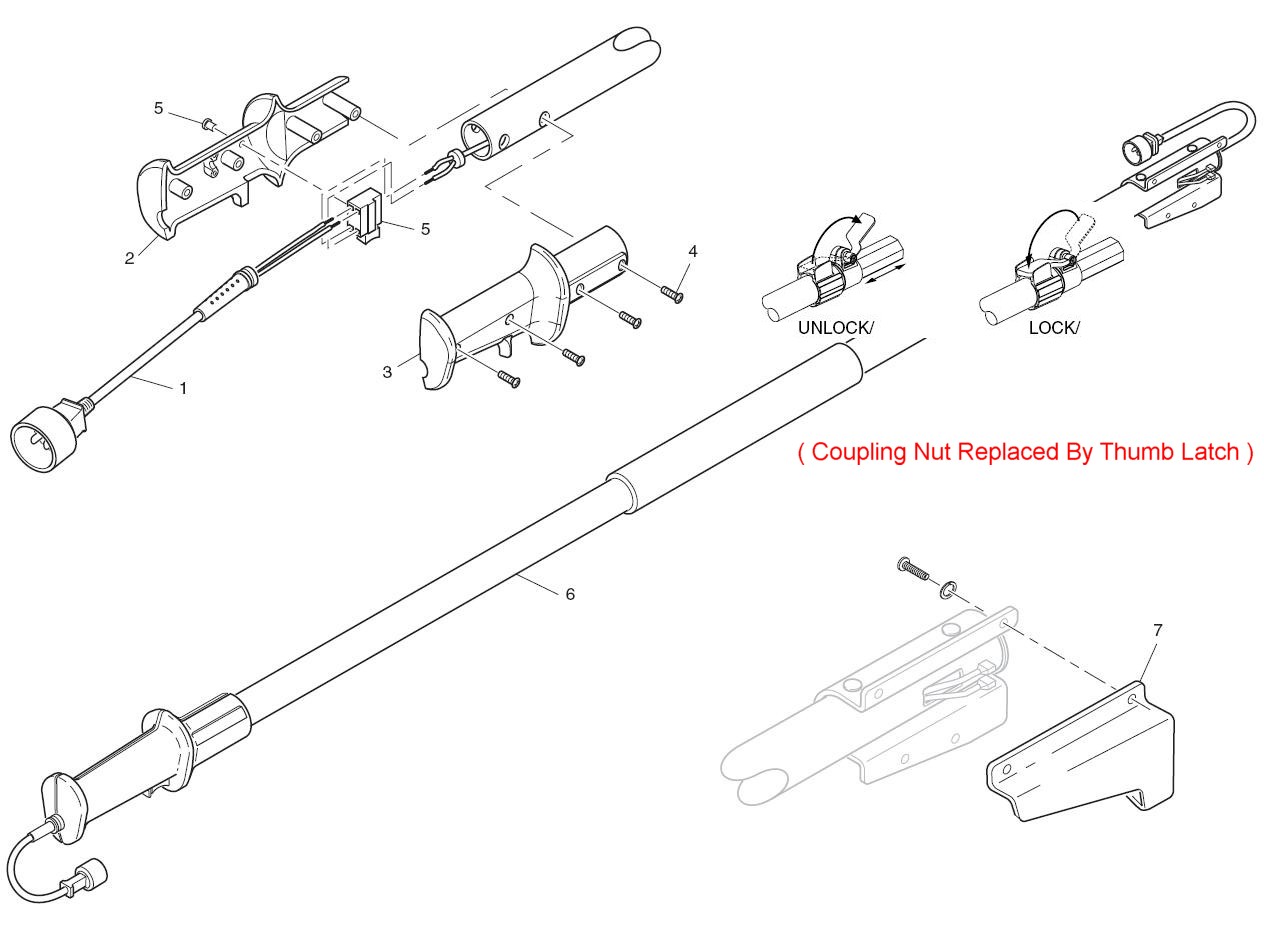

New style pole with latch lever part # 111180-01

Plastic bracket for new style pole part # 111304-01

Old style pole with twist lock coupler, or metal bracket to hold saw onto pole
requires replacement of both parts above.
